Rheonics sensor electronics is the brain of the sensor probe. In addition, it supports multiple communication options.

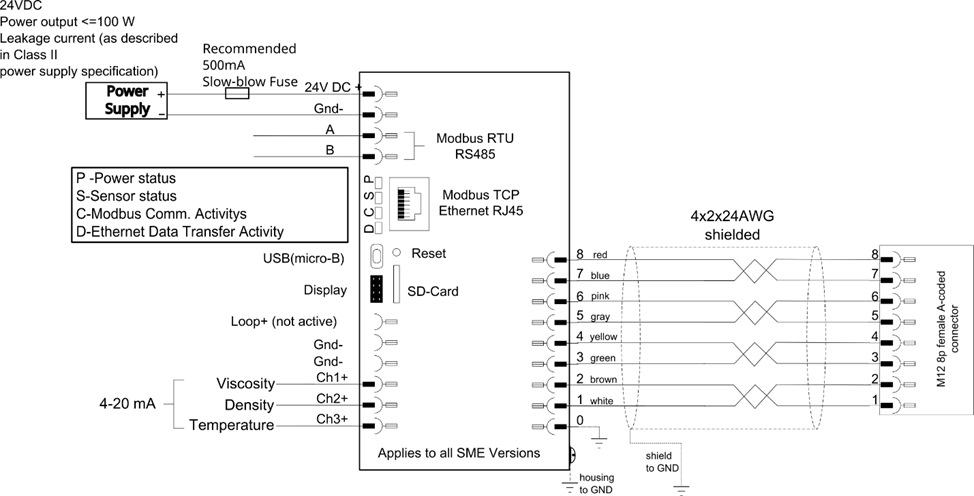

The figure below shows the typical connections. Fuses are optional.
Note:
- Shield connection to terminal 0 is not needed on the electronics except when used with EX barriers.
- For Sensor electronics, a fuse is not necessary from the DC converter but if you plan to use then a 500mA slow-blow fuse is sufficient. The device has a maximum power input requirement of under 5W.
- Only for Ex Sensors. Power Input: 240V Maximum AC Single Phase, this is exclusive for Ex sensor configuration and would be the best to protect the zener barriers used in the configuration, only single phase power supplies should be used.
- Special configuration is used when Ex sensor.
Download the drawing as a pdf, dxf, jpg or svg file.
